HSEE emergency power supply system is a product designed and developed by Jichai for the purpose of providing high-quality power equipment in the field of oil sales by implementing the HSE policy of CNPC and combining with the requirements of "internationalized concept, standardized design, unified image and maximum efficiency" of the design and construction of refueling (gas) stations and oil depot.

HSEE emergency power supply system solves the power failure event in the sudden situation of the gas station and oil depot and ensures the normal operation of the gas station and oil depot.

Meet the demand of power supply capacity in the special environment of gas stations and oil depots; After the power is cut off, quickly restore the power supply to the gas station; The power supply system has advantages in safety, economy, and noise, etc.

This series of products are mainly used in the oil sales field of refueling (gas) stations, oil depot, and so on, as an emergency standby power supply. It can also be used in hotels, hospitals, and other civilian areas.

This series of products can meet the demand of power supply capacity of oil (gas) station and oil depot, etc., and the technical indexes of the products have reached the leading level in China. In this application field, the products can replace imported gensets, and the refueling (gas) station and oil depot have the characteristics of three low and four high.

Functional description:

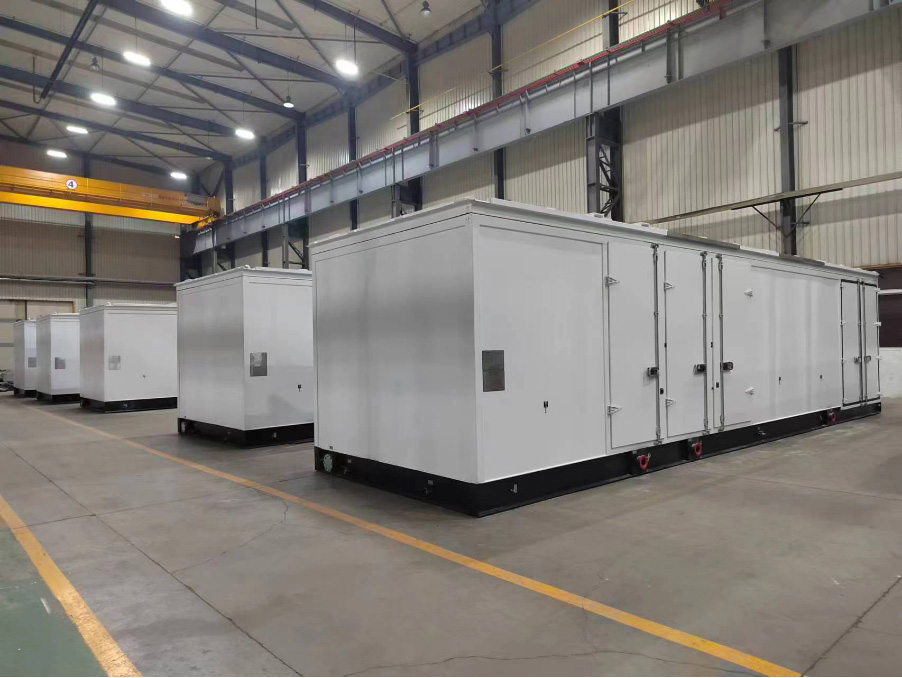

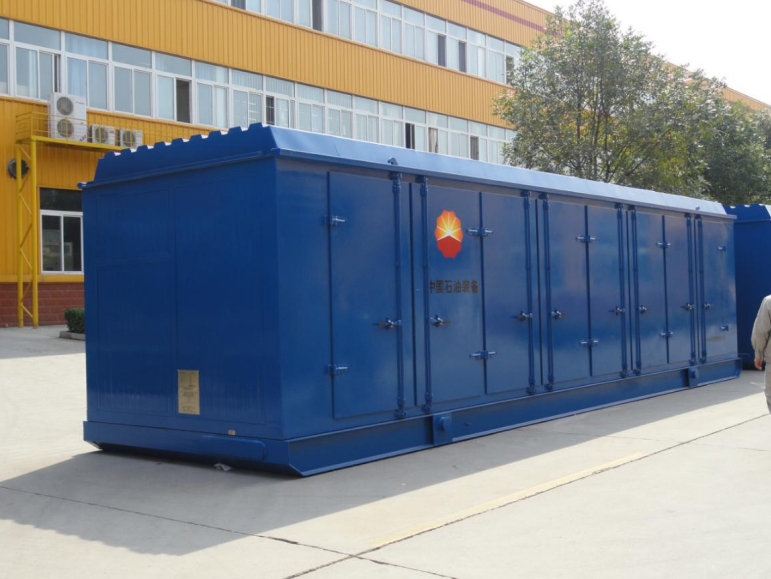

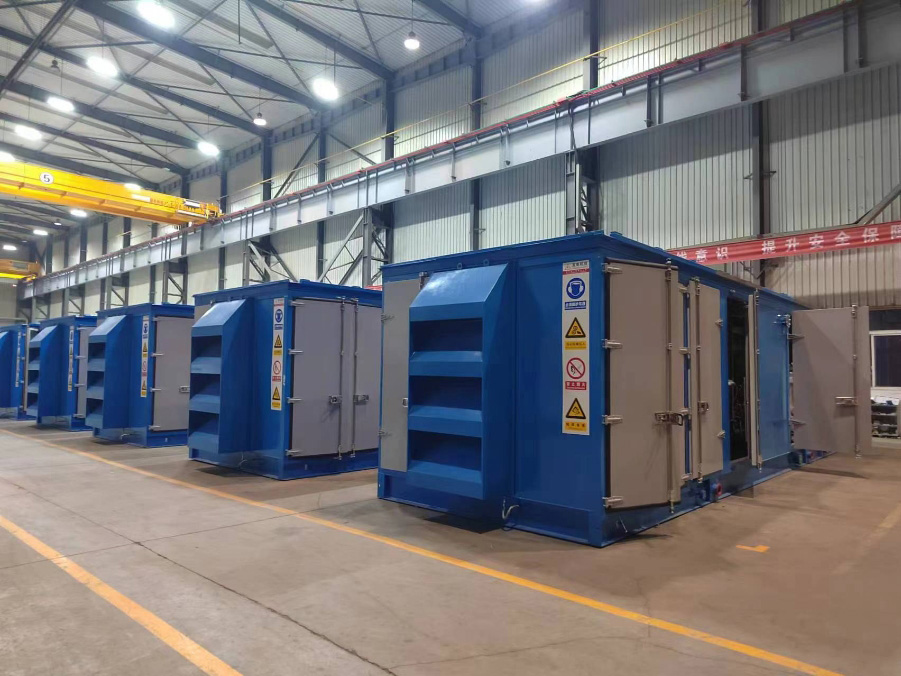

1)The container is equipped with a distribution box to provide power to all low-voltage loads in the engine room, such as horizontal radiator fans, control screens, lighting, exhaust (supply) fans (for horizontal distribution), chargers, electric heating (optional), oil pumps, electric heating (optional), and outdoor searchlights. It can also be responsible for controlling related equipment (according to project configuration requirements);

2)Two track suspension beams and a hoist are installed on the top of the engine room, with a lifting capacity of 0.5 tons per beam;

3)Inlet of engine air filter and the engine room are equipped with electric heating devices to avoid freezing and blockage (optional);

4)The floor of the machine room is equipped with an axial drive mechanism for the generator, which enables the generator to detach from the coupling by 200mm. (Optional)

5)If the indoor heating temperature in the machine room is not lower than 5 ℃, an insulation layer needs to be installed under the chassis of the machine room, and electric heating heaters (optional) are used inside the machine room;

6)One explosion-proof acoustic and visual alarm lamp is installed outside each machine room. The lighting inside the machine room is an explosion-proof LED lamp with emergency function. Other equipment and boxes do not need to be explosion-proof (optional).

7)Ladder: Install a simple ladder at a suitable position on the box;

8)Configure the fire protection system in the machine room: Install dry powder fire extinguishers as fire extinguishing devices (standard), and other flame detectors, methane leak detectors, smoke detectors, etc. as optional options;

9)Note: The specific configuration shall be subject to the actual situation of the project.

Application case：

Functional description:

1)The container is equipped with a distribution box to provide power to all low-voltage loads in the engine room, such as horizontal radiator fans, control screens, lighting, exhaust (supply) fans (for horizontal distribution), chargers, electric heating (optional), oil pumps, electric heating (optional), and outdoor searchlights. It can also be responsible for controlling related equipment (according to project configuration requirements);

2)Two track suspension beams and a hoist are installed on the top of the engine room, with a lifting capacity of 0.5 tons per beam;

3)Inlet of engine air filter and the engine room are equipped with electric heating devices to avoid freezing and blockage (optional);

4)The floor of the machine room is equipped with an axial drive mechanism for the generator, which enables the generator to detach from the coupling by 200mm. (Optional)

5)If the indoor heating temperature in the machine room is not lower than 5 ℃, an insulation layer needs to be installed under the chassis of the machine room, and electric heating heaters (optional) are used inside the machine room;

6)One explosion-proof acoustic and visual alarm lamp is installed outside each machine room. The lighting inside the machine room is an explosion-proof LED lamp with emergency function. Other equipment and boxes do not need to be explosion-proof (optional).

7)Ladder: Install a simple ladder at a suitable position on the box;

8)Configure the fire protection system in the machine room: Install dry powder fire extinguishers as fire extinguishing devices (standard), and other flame detectors, methane leak detectors, smoke detectors, etc. as optional options;

9)The machine room requires a silent type, with 85dB at 1m.

10)Note: The specific configuration shall be subject to the actual situation of the project.

Application case：

On the basis of Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of improving the reliability, economic performance, and power performance of diesel engine, solving three leaks, appearance quality, and maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets, and construction machinery. Series 2000 diesel engines can be matched with torque converter sets, coupler sets, and diesel generator sets for driving drilling rigs or mud pumps, as well as fire pumps and flood pumps, etc.

12V175 diesel engine with high pressure, low energy consumption, high reliability, long life characteristics, Through the use of electronic control, high-pressure common rail, Miller cycle, exhaust post-treatment, high-efficiency supercharger, and other new technologies, the engine power performance, economy, reliability, emission index, and other aspects reach the international advanced level: the average effective pressure of diesel engine reaches 2.0MPa, the first overhaul period reaches 35,000 hours, the bare-machine emissions meet GB20891 II.

The hydraulic torque converter is a flexible transmission device installed between the power machine (such as diesel engine and electric motor) and the working machine (such as a winch, rotary table, and drilling pump), using mineral oil as the working medium and transmitting power of the power machine to the working machine.YBLT900 hydraulic torque converter is a centrifugal turbine torque converter with a charging and adjusting valve and its working chamber diameter is 900mm.It is compatible with G12V190PZL (or CAT3512) diesel engines and is mainly used on oil rigs.

On the basis of the Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of reliability, economic and power performance, appearance quality, maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets, and construction machinery. It has been used in many electric drill projects.

Series 3000 marine engine is a kind of diesel engine with the character high supercharging, high power, low fuel consumption, high reliability, and long service life. In its design, it absorbs and draws lessons from the advanced structural technology of foreign diesel engines. The crankshaft, engine block, cylinder head, connecting rod, camshaft, and other main important parts are basically universal with 601 series diesel engines.t can also be regarded as an improved model in the application filed on the basis of 601 series diesel engine, whose dynamic performance and economic indexes have been greatly improved. The crankshaft structure with double-end output is adopted, and the connection mode of output end is designed according to the SAE standard. It can be equipped with gearbox sets and pump sets, which is suitable for the transport ship and engineering ship. All products have passed CCS certification.

so as to better meet the power requirements of various oil drilling rigs, generator sets and construction machinery.2000 series diesel engine can be matched with torque converter engine set, Hydraulic transmission coupling set and diesel generator set, used for driving drilling rigs or mud pumps, and can also be matched with fire pump, flood pump, etc.

12V175 diesel generator set is a high-performance power set developed for the working condition of an electric drilling machine. According to the characteristics of oilfield working conditions, the Genset has been designed in terms of starting performance, sudden reduction capacity, and continuous working capacity. In order to realize unattended operation, Genset has installed a remote monitoring system, which realizes the real-time recording of the Genset field data and remote monitoring on the Internet.

The electric motor coupling power unit is driven by electric motors and makes full use of power grid resources, which realizes the electric driving transformation of traditional mechanical drilling machine, reduces drilling cost, improves economic benefits, effectively reduces drilling noise, and has no exhaust emission, thus greatly improving the working environment. The unit is powered by a high-power electric motor, and users can make full use of cheap grid power resources to reduce the drilling cost by 30% ~ 45%. It is especially suitable for areas with long drilling cycles, complicated geological conditions, inconvenient transportation and concentrated well locations.

12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability, and long life，through the use of electronic control, high-pressure common rail, Miller cycle, exhaust after-treatment, high-efficiency supercharger, and other new technologies，Its dynamic performance, economy, reliability, and emission index have reached the international advanced level: The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II.12V175 diesel-oil generator set is a kind of high-performance power set developed for the working condition of electric drilling machine. According to the characteristics of oilfield working conditions, the engine has been designed in terms of starting performance, sudden reduction capacity, and continuous working capacity. In order to realize unattended operation, the engine has installed a remote monitoring system, which realizes the real-time recording of the engine's field data and remote monitoring on the Internet.

In recent years, with the improvement and promotion of H16V series gensets, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign gensets, expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage of providing firewood.

The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas and biogas, which has a broad market demand prospect.

Series 140 engine is a high-performance, high-speed engine with full intellectual property rights developed by Jichai and AVL, featuring high pressurization, low energy consumption, high reliability, and long service life. It can meet the TIER2 and European Ⅲ emission standards,　Widely used in oil vehicle drilling rigs, oil specials, wellsite generator sets, mobile power stations or backup power sources, construction machinery, trucks, and other fields. Each technical index achieves the international advanced level, the domestic leading level of 5-10 years.

Series 4000 long-stroke diesel engines have reached the international level in terms of power performance, economic performance, and reliable performance, etc. They are featured by compact appearance, simple operation and maintenance, and high power index. They can match 50Hz and 60Hz frequent-frequency motors and meet various power needs. They have been applied in electric drilling projects many times.

The power range of China's gas engine is mainly from 200kW to 600kW, and the market demand for gas engines above 1000kW is very big. Series 6000 gas engine is a high-power gas engine developed by our company for this situation. Now the series of gas engine power can be up to 1600 kw. It adopts the most advanced technology of air-fuel ratio control, engine performance, fuel economy, reliability and security were greatly improved, and its main performance index has reached the international advanced level, can form a complete set of gas generator and compressor sets, meet the needs of urban and wellsite power supply and compressor markets.

Jichai series 140 engine is a high-performance, high-speed engine developed by Jichai in cooperation with AVL with all intellectual property rights，It has the feature of high pressure, low energy consumption, high reliability, long - life, meets the TIER2 and European Ⅲ emission standards，it is widely used in oil vehicle drilling rigs, oil specials, wellsite generator sets, mobile power stations or backup power sources, construction machinery, trucks and other fields. Each technical index achieves the international advanced level, the domestic leading level of 5-10 years.

In recent years, with the improvement and promotion of series H16V Genset, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign Genset, at the meantime expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage.

The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas, and biogas, which has a broad market demand prospect.

On the basis of Z12V190B diesel engine, series 2000 diesel engines have been greatly improved in terms of improving the reliability, economy, power performance, appearance quality and convenience for maintenance of diesel engines, so as to better meet the requirements of power for various oil drilling rigs, generator sets and construction machinery.

Series 3000 land-used diesel engine is a new generation diesel engine developed by Jichai to meet the demand of the developing petroleum industry and improve the advancement and reliability of our country's drilling equipment. This diesel engine is developed on the basis of 6000 series diesel engines, absorbing foreign advanced structure and technology, and its dynamic and economic indexes have been greatly improved, and its main performance indexes have reached or approached the international advanced level. Series 3000 land-used diesel engines can meet the demand for power of mechanical drilling rigs and electric drilling rigs of 4000 to 7000 meters. Can be installed in the same chassis with the torque converter, coupling set, used to drive drilling rigs or mud pumps. It can also be used to match the power station composed of single and double supporting generators and the power of a fire pump and flood pump.

This series of gas Genset choose sinotruk Steyr Ⅲ series engine for the host, with low density, low emissions, low gas consumption, low noise, and other typical characteristics.

12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability, and long life，Its dynamic performance, economy, reliability, and emission index have reached the international advanced level through the use of electronic control, high-pressure common rail, Miller cycle, exhaust after-treatment, high-efficiency supercharger and other new technologies. The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II. 12V175 diesel generator set is a high-performance power set developed for the working condition of an electric drilling machine. According to the characteristics of oilfield working conditions, the Genset been designed in such aspects as starting performance, sudden reduction capacity, and continuous working capacity: In order to realize unattended, the Genset installed a remote monitoring system, which realized the real-time recording of the Genset field data and remote monitoring on the Internet.

Series 4000 long-stroke diesel engine is designed and developed according to the current domestic and foreign internal combustion engine industry development situation, combining with Austria AVL simulation analysis software from Liszt, and combining with its own years of product research and development experience and cooperation with domestic universities and research institutions.

The dynamic performance, economic performance, reliable performance, and other indicators of the product have reached the international level, with the characteristics of compact shape, simple operation, and maintenance, high power index, it can match 50Hz and 60Hz frequency operated motor and meet various power needs.
