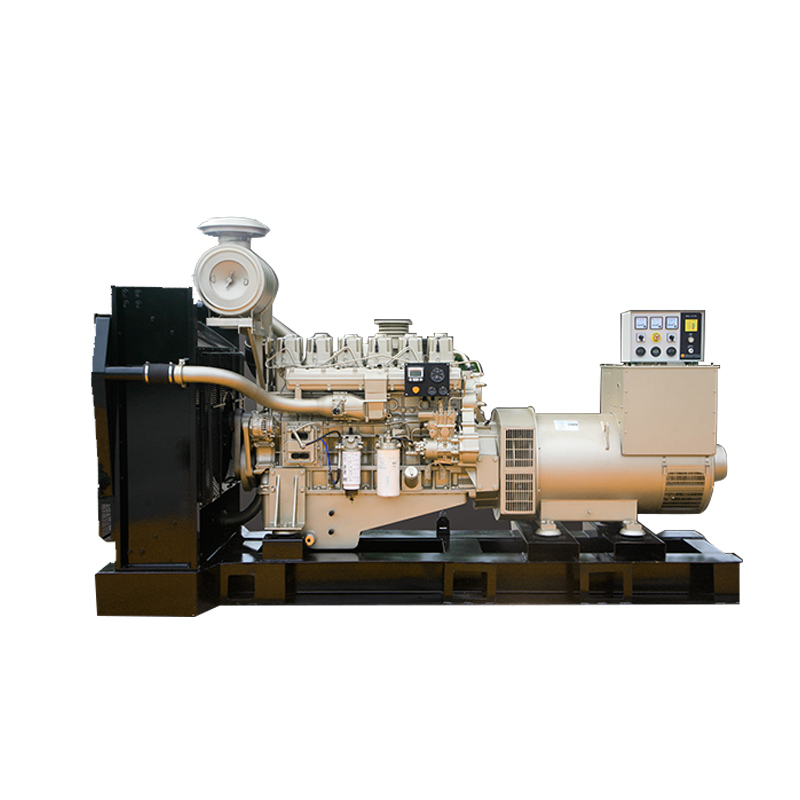

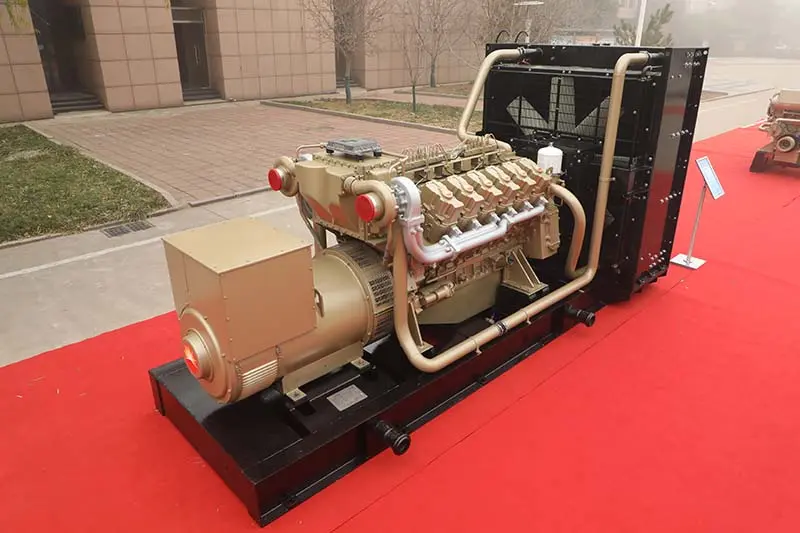

140 Series (400KW-900KW)
Jichai 140 series diesel engine is a high-performance high-speed diesel engine with all intellectual property rights developed by Jichai and AVL.
Product Details
Specification of 140 Series（400KW-900KW)
Jichai 140 series diesel engine is a high-performance high-speed diesel engine with all intellectual property rights developed by Jichai and AVL. The products are mainly used in light oil drilling rigs, petroleum machinery, and mobile power stations, construction machinery, heavy trucks, and other fields. Can meet all kinds of power generation needs. It has the characteristics of compact shape, simple operation and maintenance, and high power index.
| Genset model | Engine model | Alternator model | Power kW | RPM,r/min | Voltage V | Frequency Hz | Power factor | Dimension mm | Weight kg |
| 400GF30 | JC15 | XN5C series | 400 | 1500 | 400V/6300V/10500V | 50 | 0.8 | 3420×1270×1654 | 3300 |
| 450GF30 | JC15D-3 | 450 | 1800 | 480/13800 | 60 | 3420×1270×1654 | 3300 | ||
| 800GF30 | JC30 | 800 | 1500 | 400V/6300V/10500V | 50 | 4500×1941×2031 | 6500 | ||
| 900GF30 | JC30D-3 | 900 | 1800 | 480/13800 | 60 | 4500×1941×2031 | 6500 |
