Specification of 2000 Series

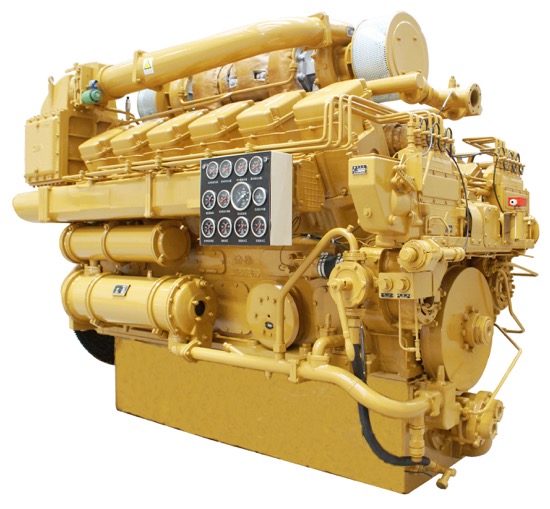

Series 2000 is based on the Z12V190BC1 diesel engine awarded with the national Gold Award according to the service conditions and special requirements of Marine engines, the shafting, lubricating system, cooling system, intake, and exhaust system and monitoring system have been improved comprehensively from the aspects of safety, reliability and service mathe CCS certification.intenance. The gearbox can be used to reduce the speed and load of transport ships and engineering ships. It can meet the requirements of gas and electricity double starting, remote operation, engine parallel, and so on. The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed.
| Model | Type | Cylinders & Arrangement | Cylinders bore,mm | Piston stroke,mm | Rated power,kw/hp | RPM,r/min | Total piston displacement,L | Fuel oil consumption rate,g/kW.h | Lub. oil consumption rate,kW.h | Dimension mm | Weight kg |
| 6190ZLC | Four stroke, pressurized intercooled, water-cooled, direct-injection combustor | 6 cylinders, in-line | 190 | 210 | 450/610 | 1450 | 35.73 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
| 6190ZLC-1 | 400/540 | 1200 | |||||||||
| 6190ZLC-2 | 330/450 | 1000 | |||||||||
| 6190ZLC-3 | 400/540 | 1300 | |||||||||
| B6190ZLC | 450/610 | 1450 | 3000×1324×1820 | ||||||||
| B6190ZLC-1 | 400/540 | 1200 | |||||||||
| B6190ZLC-2 | 330/450 | 1000 | |||||||||
| B6190ZLC-3 | 400/540 | 1300 | |||||||||
| 8190ZLC | 8 cylinders, in-line | 720/980 | 1450 | 47.63 | 3175×1220×2055 | 5200 | |||||
| 8190ZLC-1 | 600/816 | 1200 | |||||||||
| 8190ZLC-2 | 500/680 | 1000 | |||||||||
| 8190ZLC-3 | 650/884 | 1300 | |||||||||
| C6190ZLC | 6 cylinders, in-line | 230 | 550/748 | 1350 | 39.13 | ≤1.0 | 2995×1133×1754 | 3960 | |||
| C6190ZLC-1 | 490/667 | 1200 | |||||||||
| C6190ZLC-2 | 400/544 | 1000 | |||||||||
| C6190ZLC-3 | 530/721 | 1300 | |||||||||
| C8190ZLC | 8 cylinders, in-line | 540/735 | 1000 | 52.17 | 3180X1220X2055 | 5200 | |||||
| C8190ZLC-1 | 650/884 | 1200 | |||||||||
| C8190ZLC-2 | 700/952 | 1300 | |||||||||
| C8190ZLC-3 | 735/1000 | 1350 | |||||||||
| S6190ZLC-1 | 6 cylinders, in-line | 275 | 900/1225 | 1200 | 46.78 | ≤195 | ≤1.0 | 3144×1571×2246 | 7200 | ||
| S6190ZLC-2 | 750/1020 | 1000 | |||||||||
| S6190ZLC-4 | 675/918 | 900 | |||||||||
| S6190ZLC-5 | 825/1122 | 1100 | |||||||||
| S6190ZLC-7 | 535/728 | 750 | |||||||||
| AS6190ZLC-2 | 1000/1361 | 1200 | 3440×1405×2190 | 8200 | |||||||
| S8190ZLC-1 | 8 cylinders, in-line | 1200/1633 | 1200 | 62.38 | ≤195 | 3744X1571X2246 | 8500 | ||||
| S8190ZLC-2 | 1000/1361 | 1000 | |||||||||
| S8190ZLC-4 | 900/1245 | 900 | |||||||||
| S8190ZLC-5 | 1100/1497 | 1100 | |||||||||
| S8190ZLC-7 | 750/1020 | 750 | |||||||||
| AS8190ZLC-2 | Electronically controlled injection | 1320/1796 | 1200 | 4040X1410X2190 | |||||||
| G6190ZLC | Four stroke, pressurized intercooled, water-cooled, direct-injection combustor | 6 cylinders, in-line | 210 | 540/735 | 1450 | 35.37 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 | |
| G6190ZLC-1 | 450/612 | 1200 | |||||||||
| G6190ZLC-2 | 380/517 | 1000 | |||||||||
| G6190ZLC-3 | 480/653 | 1300 | |||||||||
| G12V190ZLC1 | 12 cylinders V type | 1000/1360 | 1450 | 71.45 | ≤209 | ≤1.6 | 3744.5×1571×2246 | 5800 | |||
| G12V190ZLC-1 | 750/1020 | 1200 | |||||||||
| G12V190ZLC-2 | 620/844 | 1000 | |||||||||
| G12V190ZLC-3 | 810/1102 | 1300 |
