4000 Series(940KW-1300KW)
The dynamic performance, economic performance, reliable performance, and other indicators of the product have reached the international level
Specification of 4000 Series

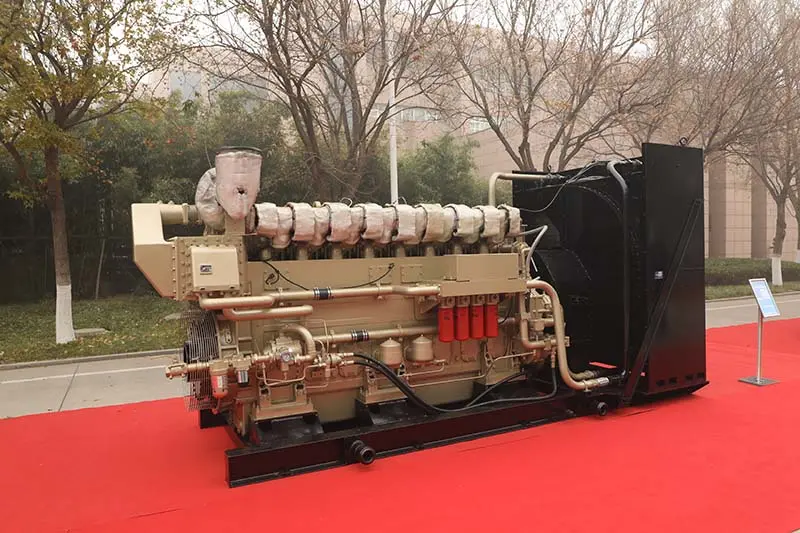

Series 4000 long-stroke diesel engine is designed and developed according to the current domestic and foreign internal combustion engine industry development situation, combining with Austria AVL simulation analysis software from Liszt, and combining with its own years of product research and development experience and cooperation with domestic universities and research institutions.
The dynamic performance, economic performance, reliable performance, and other indicators of the product have reached the international level, with the characteristics of compact shape, simple operation, and maintenance, high power index, it can match 50Hz and 60Hz frequency operated motor and meet various power needs.
Description | Engine model | Injection system | Speed adjustment mode | Cylinder&Arrangement | Cylinders bore,mm | Piston stroke,mm |
Engine with fan and radiator | BL12V190PZL-1 | Monoblock Pump | Hydraulic or Electro-hydraulic Governor | 12 cylinders,V type | 190 | 255 |
BL12V190PZL-2 | ||||||
BL12V190PZL-3 | ||||||
AL8190PZLG-1 | ECU Electric Control Monoblock Pump | Electronic speed governor | 8 cylinders L type | |||
AL8190PZLG-3 | ||||||
Description | Genset model | Rated power kw | Ratation speed r/min | Engine model | Hydraulic transmission coupler/Torque Converter Model | Height of center |
Hydraulic transmission coupling set | BL12V190PZL-3/O | 1300 | 1300 | BL12V190PZL-3 | YOZJ875 | 760 |
CO1300-3/20 |
